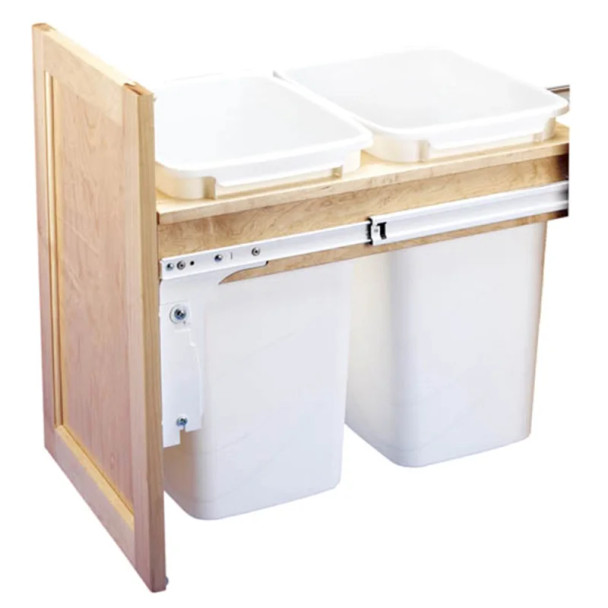

- Rev-A-Shelf 4WCTM Series are designed for door mounting only
- The RS4WCTM Series is designed for absolute sturdiness with rear adjustable mounting brackets for variances in cabinet depth
- All RS4WCTM Series come fully assembled and are constructed with solid maple wood frames
- The RS4WCTM Series comes in four different versions to accommodate 1-1/2", 1-5/8" and 1-3/4" face frame and frameless applications
- Units are equipped with heavy duty ball bearing slides with 1" over-travel capable of 150 lb maximum loads
- Single bin units are available with 35 quart and 50 quart bins, while double bin units are available in two 27 quart 35 quart and 50 quart bins
- Single 35 quart trash pull outs include a plastic storage bin at back of unit (9-1/2" Length x 6-1/2" Wide x 5-5/8" Deep) at back of pull out
- Waste bins are available in white
- Replacement bins are sold separately
- Spacer kits available for custom applications and can add up to 1-1/2" per side
- Door mount brackets are included with every trash pull out
/liPacking & Sold In: Each/li
| Bin Color |
White |
| Bin Size |
27 quart |
| Cabinet Type |
Frameless |
| Color/Finish |
Maple |
| Configuration |
Double |
| Depth |
22-5/8 in |
| Door Mount |
Yes |
| Extension |
Full extension |
| Height |
17-3/4 in |
| Minimum Opening Depth |
23 in |
| Minimum Opening Height |
18-1/4 in |
| Minimum Opening Width |
13-1/2 in |
| Motion Technology |
Standard |
| Number of Bins |
2.0 |
| Species |
Maple |
| Weight Capacity |
150 lb |
| Width |
13-1/2 in |
