Titus

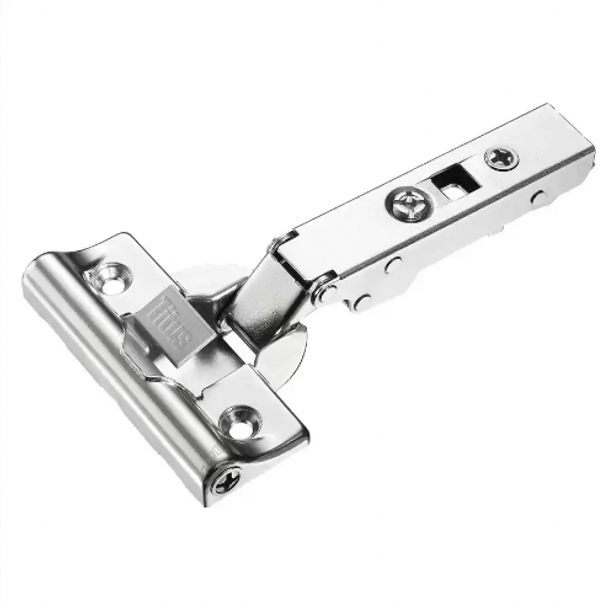

Titus T-Type Glissando 120deg Hinge Full Overlay Soft-Closing | Screw-on | 7010UT005400

Item # / SKU: 7010UT005400 MPN: 701.0UT0.054.00 Brand: Titus
Fast Shipping Direct from our distribution centers
Expert Support Dedicated account representatives
Quality Guaranteed Trusted brands, professional grade
Opening Angle: 120? Drilling diameter for hinge cup: 35mm Drilling depth: 11.9mm Hinge on plate mounting system: '3Way' snap-on Side Adjustment: +3/-1mm Height Adjustment: +2/-2mm Depth Adjustment: +4/-1 mm
Arm Style Straight
Boring Pattern 45 mm
Color/Finish Nickel
Cup Depth 9.5 mm
Cup Diameter 35 mm
Motion Technology Soft-Close
Mount Type Screw-On
Opening Angle 120 Degree
Overlay Full Overlay
Size 120

No documents are currently available for this product.

Contact us at webteam@wurthwoodgroup.com for technical documentation.
