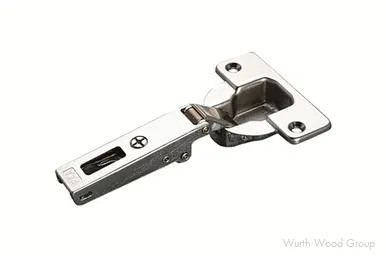

- Salice Series F hinges are designed to work with all Salice mounting plates.
- Large overlays possible: up to 1 3/8" (34 mm).
- Exceeds ANSI/BHMA grade 2 standards and is ISO 9001 and ISO 14001 (Environmental) certified.
- Series F hinges for profile and thicker doors are the perfect solution for overlay pocket doors. Salice Series F thick door hinges can be used for doors up to 40 mm.
- Series F 94 degree opening thick door hinges have: Cup depth of only 13 mm, hinge cup edge drilling distance of 3 mm to 15 mm, patented parallel side-to-side adjustment of +5.5 mm to -0.5 mm via hinge arm screw.
- Series F hinges are compatible with the Smove soft-close devices.
- Packing: Full box quantity of 50.
- Sold In: Both broken and full box quantities. Discount available for full box orders.
| Arm Style |
Half Crank |
| Boring Pattern |
52 mm |
| Cabinet Type |
Face-Frame,Frameless |
| Color/Finish |
Nickel |
| Cup Depth |
13 mm |
| Cup Diameter |
40 mm |
| Cup Mount |
Screw-On |
| Hinge |
Straight-Arm |
| Material Type |
St |
| Motion Technology |
Self-Close |
| Mount Type |
Screw-On |
| Opening Angle |
94 Degree |
| Overlay |
Half Overlay |
