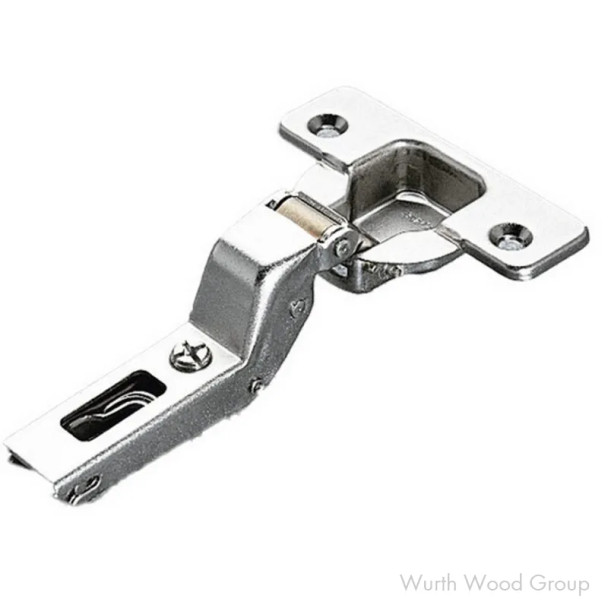

- Salice Series 200 94° Thick Door Hinges are designed to provide a solution for any project involving concealed hinges, making up an integrated system.
- Suitable for doors up to 1-1/4" thick while maintaining minimal gaps between doors.
- Large overlays possible: up to 24 mm.
- Series 200 hinges exceed ANSI/BHMA Grade 2 standards and meet ISO9001 and ISO14001 environmental certifications.
- Salice Series 200 thick door hinges are designed for use in both residential and commercial cabinets and have a Lifetime warranty.
- All steel hinge is nickel plated for corrosion resistance and is permanently self lubricating utilizing environmentally safe lubricants.
- Cup depths of only 11 mm making the hinge compatible with most cabinet door profiles.
- Hinge cup edge drilling distance of 3 mm to 9 mm.
- Patented parallel side-to-side adjustment of +4.5 mm to -1.5 mm via hinge arm screw.
- Available in two cup fastening designs: "Screw-on" with two #6 x 5/8" screws (not included) and "Press-in" dowels.
- Series 200 hinges are designed to work with all Salice mounting plates.
- Series 200 hinges are compatible with the Smove soft-close devices.
- Available in self-closing only.
- Suitable for maximum door thickness of 35 mm, with special profiles.
| Arm Style |
Full Crank |
| Boring Pattern |
45 mm |
| Cabinet Type |
Face-Frame,Frameless |
| Color/Finish |
Nickel |
| Cup Depth |
11 mm |
| Cup Diameter |
35 mm |
| Height Adjustment |
+/- 2 mm |
| Motion Technology |
Self-Close |
| Mount Type |
Screw-On |
| Opening Angle |
94 Degree |
| Overlay |
Inset |
| Side Adjustment |
+ 4.5 mm/- 1.5 mm |
| Size |
94 DEGREE |
