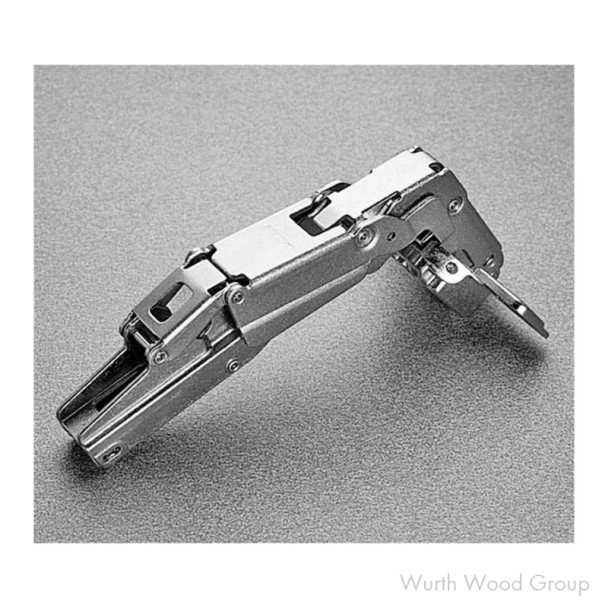

- Salice Series 200 hinges are designed to work with all Salice mounting plates.
- These hinges are part of an integrated system for concealed hinge projects and come with a lifetime warranty. They can be used in both residential and commercial cabinets.
- All steel hinge is nickel plated for corrosion resistance and is permanently self lubricating utilizing environmentally safe lubricants.
- Series 200 hinges are compatible with Smove soft-close devices.
- For the 165° opening model, these features apply: a cup depth of only 11 mm making it suitable for most cabinet door profiles; hinge cup edge drilling distance ranging from 3 mm to 6 mm; and patented parallel side-to-side adjustment of +4.5 mm to -1.5 mm via the hinge arm screw.
- Series 200 hinges exceed ANSI/BHMA Grade 2 standards and meet ISO9001 and ISO14001 environmental certifications.
- Packing is done in full box quantities of 50, with discounts available for orders placed in full boxes.
| Arm Style |
Half Crank |
| Boring Pattern |
45 mm |
| Cabinet Type |
Face-Frame,Frameless |
| Color/Finish |
Nickel |
| Cup Depth |
11 mm |
| Cup Diameter |
35 mm |
| Height Adjustment |
+/- 2 mm |
| Material Type |
St |
| Motion Technology |
Self-Close |
| Mount Type |
Screw-On |
| Opening Angle |
165 Degree |
| Overlay |
Half Overlay |
| Pack Quantity |
100 |
| Side Adjustment |
+ 4.5 mm/- 1.5 mm |
| Size |
165 DEGREE |
