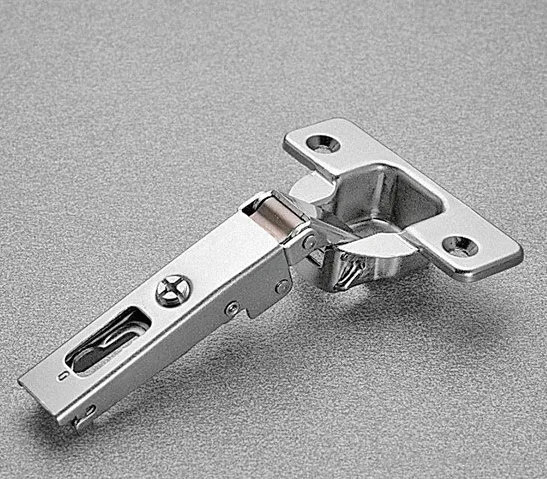

- Salice Series 200 hinges are designed to work with all Salice mounting plates.
- The 120° self-closing hinges of the Salice Series 200 make up an integrated system of hinges developed for projects that require concealed hinges. These hinges are designed for use in both residential and commercial cabinets and have a lifetime warranty.
- All steel hinge is nickel plated for corrosion resistance and is permanently self lubricating utilizing environmentally safe lubricants.
- Series 200 hinges exceed ANSI/BHMA Grade 2 standards and meet ISO9001 and ISO14001 environmental certifications. Packing: Full box quantity of 50.
- Sold In: Both broken and full box quantities. Discount available for full box orders.
- Series 200 hinges are compatible with Smove soft-close devices.
- 200 Series 120 degree opening hinges have:
- Cup depth of only 11 mm making the hinge compatible with most cabinet door profiles
- Hinge cup edge drilling distance of 3 mm to 6 mm
- Patented parallel side-to-side adjustment of +4.5 mm to -1.5 mm via hinge arm screw
| Arm Style |
Straight |
| Boring Pattern |
45 mm |
| Cabinet Type |
Face-Frame,Frameless |
| Color/Finish |
Nickel |
| Cup Depth |
11 mm |
| Cup Diameter |
35 mm |
| Height Adjustment |
+/- 2 mm |
| Material Type |
St |
| Motion Technology |
Self-Close |
| Mount Type |
Toolless |
| Opening Angle |
120 Degree |
| Overlay |
Full Overlay |
| Side Adjustment |
+ 4.5 mm/- 1.5 mm |
| Size |
120 DEGREE |
