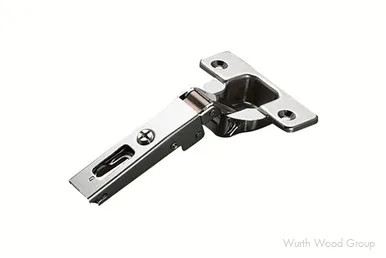

Salice 200 Series Hinge | 120deg, Cup Mount: Screw-on, Closing: Self-close, Hinge: Straight-arm | C2P9A99

Item # / SKU: C2P9A99 MPN: C2P9A99 Brand: Salice
Fast Shipping Direct from our distribution centers
Expert Support Dedicated account representatives
Quality Guaranteed Trusted brands, professional grade
- Salice Series 200 120° self-closing hinges make up an integrated system of hinges developed for projects that require concealed hinges. These hinges are designed for use in both residential and commercial cabinets and have a lifetime warranty. - All steel hinge is nickel plated for corrosion resistance and is permanently self lubricating utilizing environmentally safe lubricants. - Series 200 hinges exceed ANSI/BHMA Grade 2 standards and meet ISO9001 and ISO14001 environmental certifications. - Series 200 hinges are designed to work with all Salice mounting plates. - Series 200 hinges are compatible with Smove soft-close devices. - 200 Series 120 degree opening hinges have: - Cup depth of only 11 mm making the hinge compatible with most cabinet door profiles - Hinge cup edge drilling distance of 3 mm to 6 mm - Patented parallel side-to-side adjustment of +4.5 mm to -1.5 mm via hinge arm screw - Packing is in a full box quantity of 50. - Sold In: Both broken and full box quantities. Discount available for full box orders.
Arm Style Straight
Boring Pattern 45 mm
Cabinet Type Face-Frame,Frameless
Color/Finish Nickel
Cup Depth 11 mm
Cup Diameter 35 mm
Cup Mount Screw-On
Height Adjustment +/- 2 mm
Hinge Straight-Arm
Material Type St
Motion Technology Self-Close
Mount Type Screw-On
Opening Angle 120 Degree
Overlay Full Overlay
Pack Quantity 300
Side Adjustment + 4.5 mm/- 1.5 mm
Size 120 DEGREE
