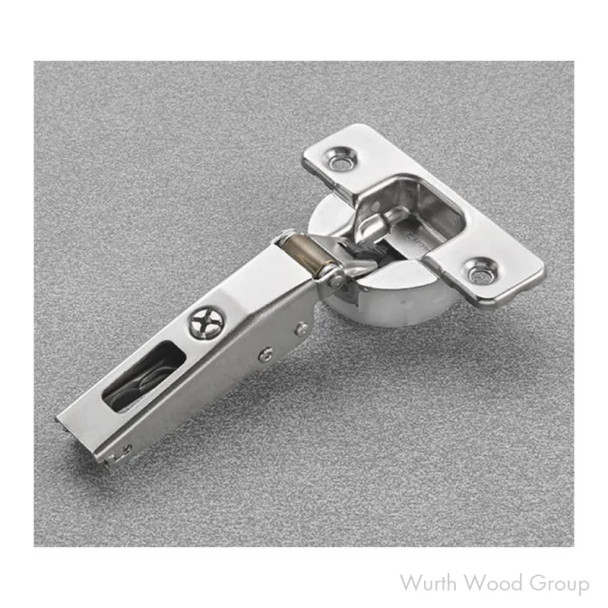

- Salice Series 100 105° Hinges feature Silentia+, an adjustable integrated soft-close mechanism operated by twin silicone-oil dampers housed in the hinge cup.
- Silentia+ is equipped with a new switch to delay the decelerating action, allowing doors to achieve the ideal closing strength.
- The hinges provide smooth opening with little resistance and are impervious to temperature extremes.
- They offer an integrated soft-close motion and feature a new soft-close adjustment switch.
- Compatible with all Series 200 mounting plates.
- The edge bore distance (K) ranges from 3 mm to 6 mm, allowing for up to a 21 mm overlay.
- For door thicknesses up to 25 mm.
- These hinges have a standard 45 mm x 9.5 mm Salice boring pattern and a 12 mm hinge cup boring depth.
- Uniform closing action is provided regardless of the door size, ensuring consistent performance across various sizes.
- Exceeding ANSI/BHMA standards A156.9-2010, these hinges come with a lifetime warranty.
- Packing: Full box quantity of 300.
- Sold In: Both broken and full box quantities; discount available for full box orders.
| Boring Pattern |
45 mm |
| Cabinet Type |
Face-Frame,Frameless |
| Color/Finish |
Nickel |
| Cup Depth |
13.5 mm |
| Cup Diameter |
35 mm |
| Height Adjustment |
+/- 2 mm |
| Material Type |
St |
| Motion Technology |
Soft-Close |
| Mount Type |
Dowel |
| Opening Angle |
105 Degree |
| Overlay |
1/2 in |
| Side Adjustment |
+ 4.5 mm/- 1.5 mm |
| Size |
110 DEGREE |
