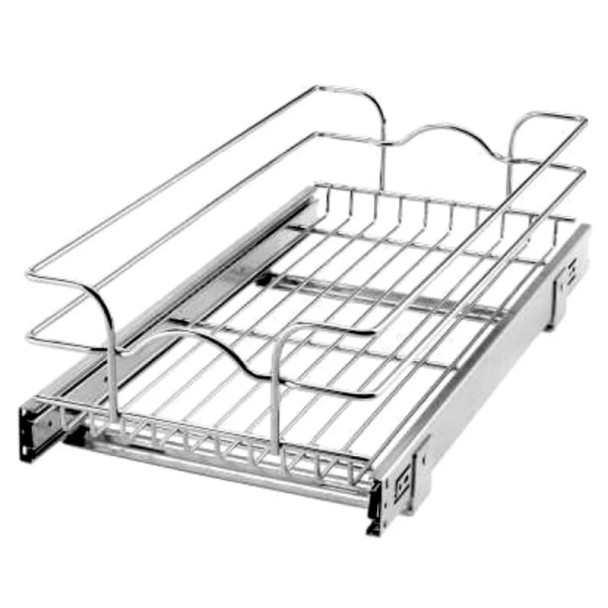

- Rev-A-Shelf 5WB Series pull out systems for base cabinets are constructed of heavy gauge wire.
- All products feature heavy duty chrome wire frames and precision full extension ball bearing slides rated at 100 lb.
- 5WB1 Series products are single shelf products, available in three depths: 18", 20", and 22".
- Designed to be mounted on the base of the cabinet with only 4 screws.
- Optional door mount kits are sold separately.
- All one-shelf organizers come without a U-Shaped bracket since they do not require height adjustment. The U-Shaped support bracket (included for two-tier organizers) mounts easily at the base and allows for telescoping rear adjustability.
- Each product is packed and sold individually.
| Bearing Type |
Ball Bearing |
| Color/Finish |
Chrome |
| Depth |
22 in |
| Dimensions |
11-3/8" (289 mm) W x 22" (559 mm) D x 7" (178 mm) H |
| Door Mount |
Yes |
| Extension |
Full extension |
| Height |
5-9/16 in |
| Length |
22 |
| Material Type |
Metal |
| Minimum Opening Depth |
22 in |
| Minimum Opening Height |
6 in |
| Minimum Opening Width |
11-1/2 in |
| Motion Technology |
Standard |
| Number of Shelves |
1 |
| Orientation |
Non-Handed |
| Pack Quantity |
1 |
| Weight Capacity |
100 lb |
| Width |
11-1/2 in |
