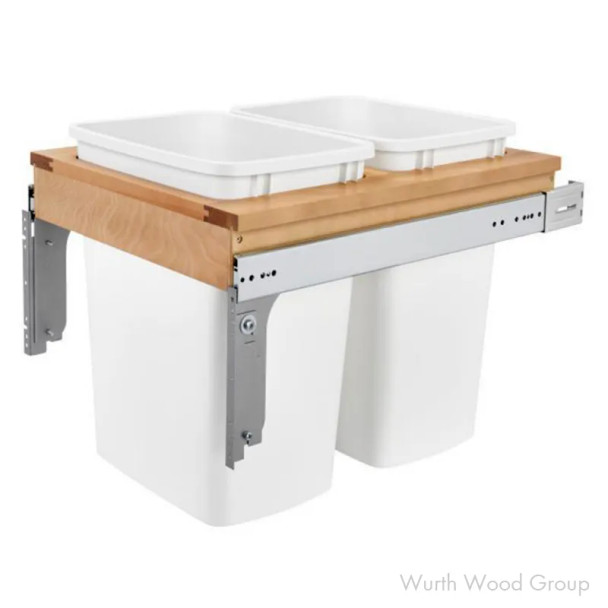

- The Rev-A-Shelf 4WCTM Series is designed for door mounting only.
- All RS4WCTM Series come fully assembled and are constructed with solid maple wood frames.
- Units are equipped with heavy duty ball bearing slides with 1" over-travel capable of 150 lb maximum loads.
- The RS4WCTM Series comes in four different versions to accommodate 1-1/2", 1-5/8", and 1-3/4" face frame and frameless applications.
- Single bin units are available with 35 quart and 50 quart bins, while double bin units are available in two 27 quart, 35 quart, and 50 quart bins.
- The RS4WCTM Series is designed for absolute sturdiness with rear adjustable mounting brackets for variances in cabinet depth.
- Single 35 quart trash pull outs include a plastic storage bin at back of unit (9-1/2" Length x 6-1/2" Wide x 5-5/8" Deep) at back of pull out.
- Waste bins are available in white.
- Replacement bins are sold separately.
- Spacer kits available for custom applications and can add up to 1-1/2" per side.
- Door mount brackets are included with every trash pull out.
Packing & Sold In: Each
| Bin Color |
White |
| Bin Size |
35 quart |
| Cabinet Type |
Face-Frame |
| Capacity |
35 QT |
| Color/Finish |
Maple |
| Configuration |
Double |
| Container Size |
35QT |
| Depth |
22-3/4 in |
| Door Mount |
Yes |
| Extension |
Full extension |
| Height |
17-7/8 in |
| Minimum Opening Depth |
22-3/4 in |
| Minimum Opening Height |
18-11/32 in |
| Minimum Opening Width |
17-3/4 in |
| Motion Technology |
Standard |
| Number of Bins |
2.0 |
| Species |
Maple |
| Weight Capacity |
150 lb |
| Width |
17-3/4 in |
