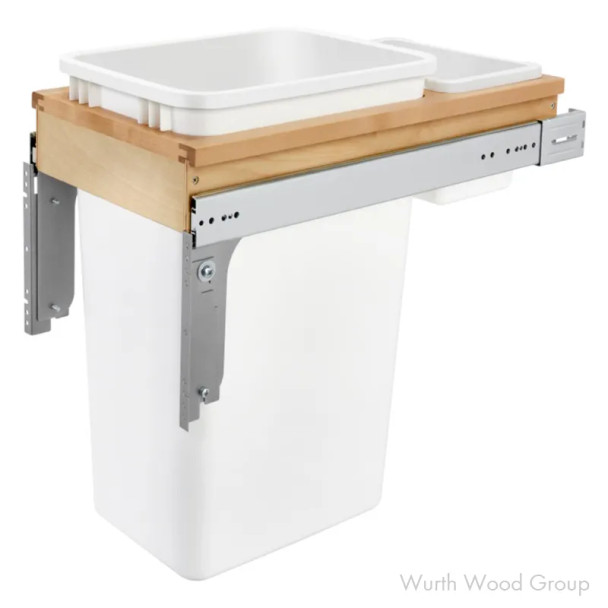

• Rev-A-Shelf 4WCTM Series are designed for door mounting only.
• The RS4WCTM Series is equipped with heavy duty ball bearing slides featuring 1" over-travel capable of handling a maximum load of 150 lb.
• Single bin units are available in two sizes: 35 quart and 50 quart bins, while double bin units come with combinations of 27 quart or 35 quart bins and a single 50 quart bin.
• The RS4WCTM Series is constructed from solid maple wood frames and comes fully assembled for ease of installation.
• All RS4WCTM models accommodate 1-1/2", 1-5/8" and 1-3/4" face frame and frameless applications, ensuring compatibility with a wide range of cabinet depths.
• Single 35 quart trash pull outs include a plastic storage bin measuring 9-1/2" Length x 6-1/2" Wide x 5-5/8" Deep at the back of the unit.
• Waste bins are available in white, and replacement bins can be purchased separately.
• The RS4WCTM Series includes rear adjustable mounting brackets for accommodating variances in cabinet depth.
• Spacer kits are available to extend the unit by up to 1-1/2" per side, offering flexibility for custom applications.
• Door mount brackets are included with every trash pull out.
Packing & Sold In: Each
| Bin Color |
White |
| Bin Size |
50 quart |
| Capacity |
50 QT |
| Color/Finish |
Maple |
| Configuration |
Single |
| Container Size |
50QT |
| Depth |
23-1/4 in |
| Door Mount |
Yes |
| Extension |
Full extension |
| Height |
21-3/4 in |
| Minimum Opening Depth |
23-1/4 in |
| Minimum Opening Height |
22-1/4 in |
| Minimum Opening Width |
12 in |
| Motion Technology |
Standard |
| Number of Bins |
1.0 |
| Species |
Maple |
| Weight Capacity |
150 lb |
| Width |
12 in |
