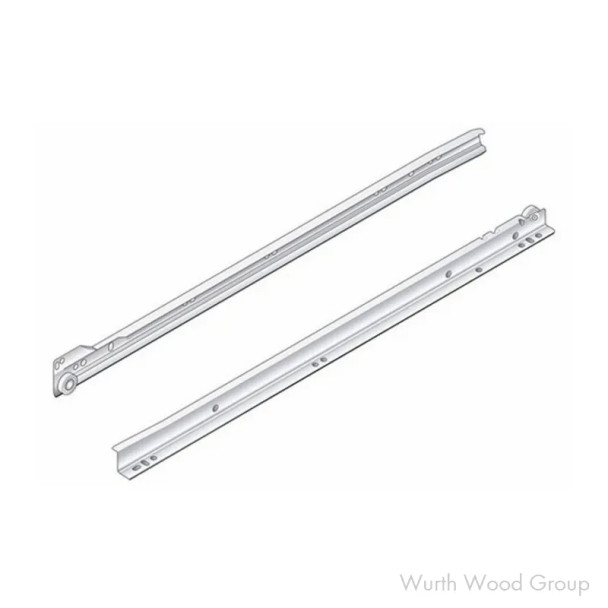

- Baer Supply's PRO50 epoxy coated slides are rated for 75 lb and provide outstanding value.
- The quiet wheel premium epoxy slide works perfectly in face-frame and European applications.
- These slides have a length of 14".
- They feature a single captive design with a positive stop.
- Lift out disconnect allows self closing action.
- Mounting holes on the cabinet member are 32 mm.
- Bottom and side mounting holes are provided for the drawer member.
- ANSI/BIFMA tested/approved to Grade 1 requirements.
- A polymer wheel ensures a lifetime of quiet, trouble-free performance.
- The mounting space requires 1/2" (+1/32" / -0") clearance each side.
- Height is specified as 1-1/2".
- Material: 1.2 mm cold rolled steel, epoxy coated.
- Color: White.
- Packing includes 25 pairs per box; sold in full box quantities only.
| Bearing Type |
Roller Bearing |
| Color/Finish |
White |
| Extension |
3/4 extension |
| Length |
14 in |
| Material Type |
St |
| Motion Technology |
Self-Close |
| Orientation |
Non-Handed |
| Pack Quantity |
25 |
| Position |
Side Mount |
| Size |
14" |
| Weight Capacity |
75 lb |
