- Baer Supply's PRO50 epoxy coated slides are rated at 75 lb and provide outstanding value.
- These quiet wheel premium epoxy slides work perfectly in face-frame and European applications.
- The mounting holes on the cabinet member measure 32 mm.
- Bottom and side mounting holes are available on the drawer member.
- They feature a positive stop for reliable performance.
- Lift out disconnect with self closing action ensures easy handling.
- These slides meet ANSI/BIFMA Grade 1 requirements after testing/approval.
- The material used is 1.2 mm cold rolled steel, epoxy coated.
- Each side requires a mounting space of 1/2" (+1/32" / -0") clearance.
- The height measures 1-1/2".
- These slides come in white color and are sold in full box quantities only, with 25 pairs per box.

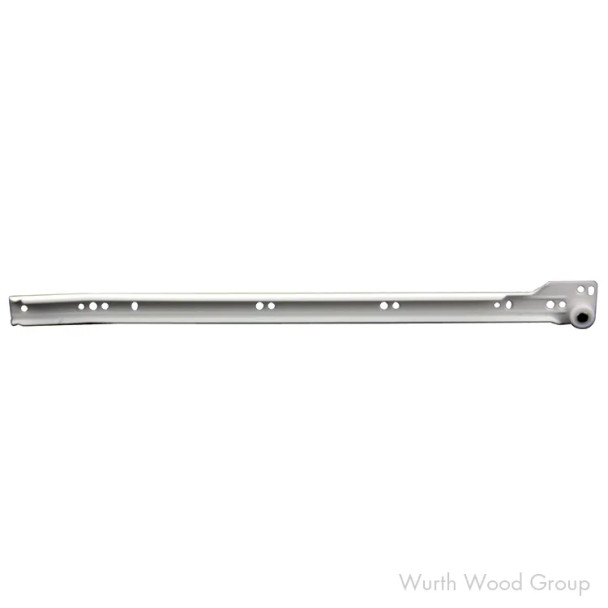

- With a length of 12", the Pro Value Series PRO 50 offers durability and ease of use.
| Bearing Type |
Roller Bearing |
| Color/Finish |
White |
| Extension |
3/4 extension |
| Length |
12 in |
| Material Type |
St |
| Motion Technology |
Self-Close |
| Orientation |
Non-Handed |
| Pack Quantity |
25 |
| Position |
Side Mount |
| Size |
12" |
| Weight Capacity |
75 lb |
