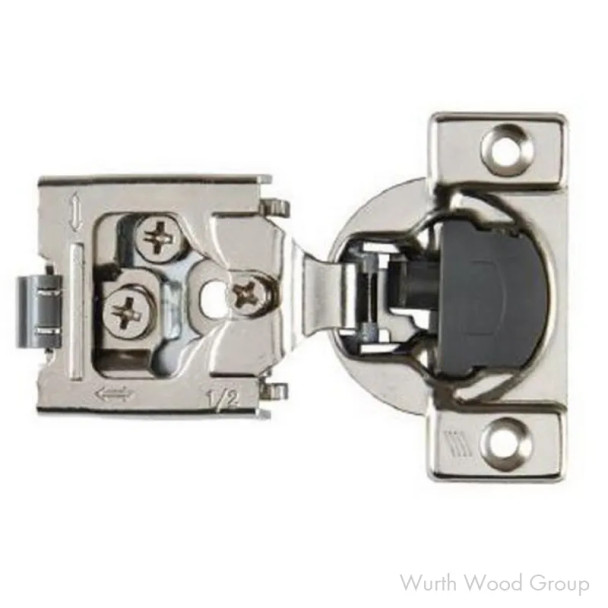

• Optimat Clip-On Hinges are a two-piece compact hinge with the integrated silent system. Optimat is a 6-way adjustable face frame hinge in 3 overlays.
• Side adjustment (under 1" overlay) +/- 1.3mm cam & (over 1" overlay) +/- 1.5mm cam, Depth adjustment: +2.6mm cam, Height adjustment: +/-1.4 mm cam
• Cup diameter: 1-3/8" (35mm), Cup distance: 1/8" (3mm)
• For door thickness up to 3/4" (19mm)
• Cup depth (minimum drilling depth) 7/16" (11mm), Dampening activation: 35°
• Comes with Silent System, 6-way adjustable face frame hinge
| Boring Pattern |
45 mm |
| Cabinet Type |
Face-Frame |
| Color/Finish |
Nickel |
| Cup Depth |
11 mm |
| Cup Diameter |
35 mm |
| Motion Technology |
Self-Close |
| Mount Type |
Dowel |
| Opening Angle |
105 Degree |
| Overlay |
1/2 in |
| Size |
1/2" OL |
