Product details

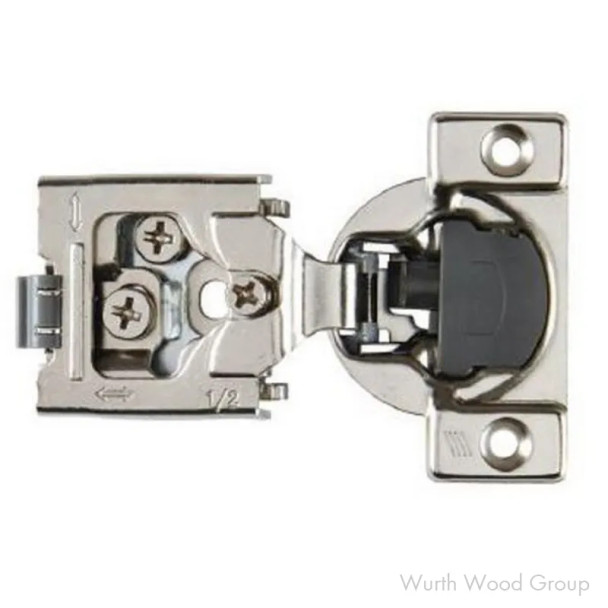

• Optimat Clip-On Hinges are a two-piece compact hinge with the integrated silent system. Optimat is a 6-way adjustable face frame hinge in 3 overlays. • For door thickness up to 3/4" (19mm) • Cup diameter: 1-3/8" (35mm), Cup distance: 1/8" (3mm) • Side adjustment (under 1" overlay) +/- 1.3mm cam & (over 1" overlay) +/- 1.5mm cam • Depth adjustment: +2.6mm cam, Height adjustment: +/-1.4 mm cam • Cup depth (minimum drilling depth) 7/16" (11mm), Dampening activation: 35° • Comes with Silent System, 6-way adjustable face frame hinge
