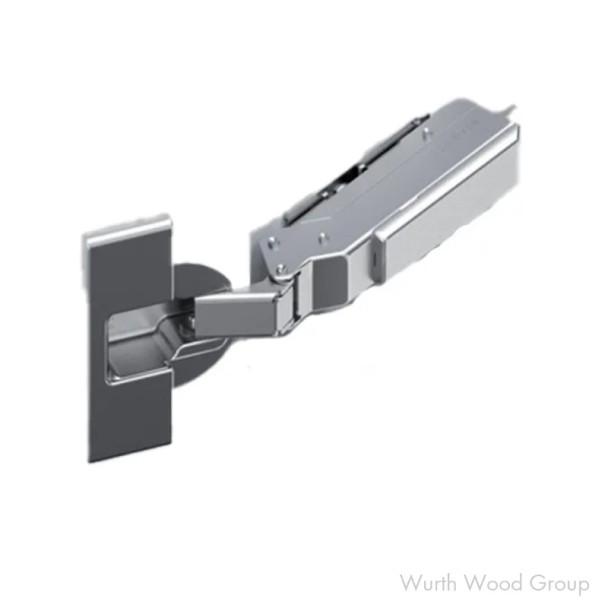

- Grass Tiomos soft-closing hinges offer unmatched performance in a timeless design.
- These 120° hinges are suitable for a wide range of applications, from standard doors to wide-angle doors.
- The Grass Tiomos hinges feature a 3-dimensional adjustment mechanism, allowing precise customization for height, width, and depth.
- Accommodates overlays up to 24 mm (15/16").
- Optimal reveal up to 24 mm door thickness.
- Suitable for both face frame or frameless cabinets.
- Convenient depth adjustment with worm gear.
- Packing: 150 each per box without screws. Sold In: Both broken and full box quantities. Discount available for full box orders.
| Arm Style |
Straight |
| Boring Pattern |
42 mm |
| Cabinet Type |
Face-Frame,Frameless |
| Color/Finish |
Nickel |
| Cup Depth |
12.6 mm |
| Cup Diameter |
35 mm |
| Depth Adjustment |
+ 3 mm/- 2 mm |
| Height Adjustment |
+ 3 mm/- 2 mm |
| Material Type |
St |
| Motion Technology |
Soft-Close |
| Mount Type |
Dowel |
| Opening Angle |
120 Degree |
| Overlay |
Overlay |
| Pack Quantity |
150 |
| Side Adjustment |
+ 3 mm/- 2 mm |
| Size |
120 DEGREE |
