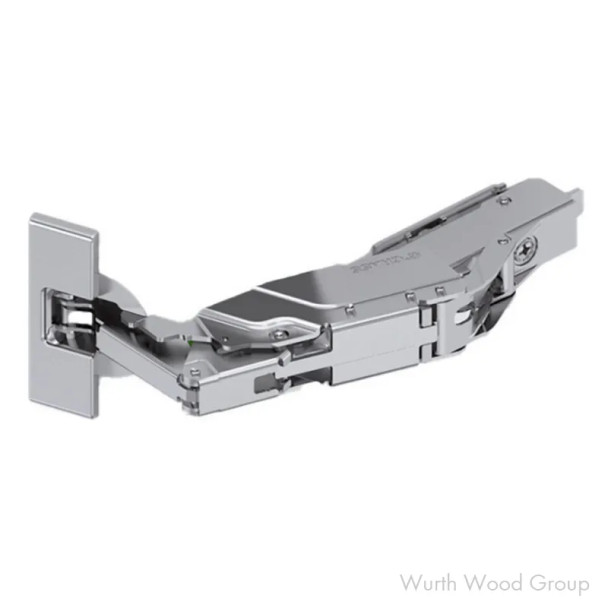

- Grass Tiomos self-closing hinges offer unmatched performance in a timeless design with a 155° hinge movement suitable for standard and wide-angle doors.
- The hinges feature a 3-dimensional adjustment mechanism that allows precise customization for height, width, and depth.
- Accommodates overlays up to 25.4 mm (1").
- Suitable base plate for 3-dimensional adjustment is included.
- Designed for both face frame or frameless cabinets.
- Features a convenient depth adjustment with worm gear.
- Zero protrusion when the door is opened at 90°.
- The cup depth measures 10 mm.
- For door thicknesses up to 32 mm (1-1/4").
- Minimal reveal design ensures sleek appearance.
- Screws and base plates are sold separately.
- Packing: 50 each per box. Sold in both broken and full box quantities; discount available for full box orders.
| Arm Style |
Straight |
| Boring Pattern |
45 mm |
| Cabinet Type |
Face-Frame,Frameless |
| Color/Finish |
Nickel |
| Cup Depth |
10 mm |
| Cup Diameter |
35 mm |
| Depth Adjustment |
+ 3 mm/- 2 mm |
| Height Adjustment |
+ 3 mm/- 2 mm |
| Material Type |
St |
| Motion Technology |
Self-Close |
| Mount Type |
Dowel |
| Opening Angle |
155 Degree |
| Overlay |
Overlay |
| Pack Quantity |
50 |
| Side Adjustment |
+ 3 mm/- 2 mm |
| Size |
160 DEGREE B45 |
