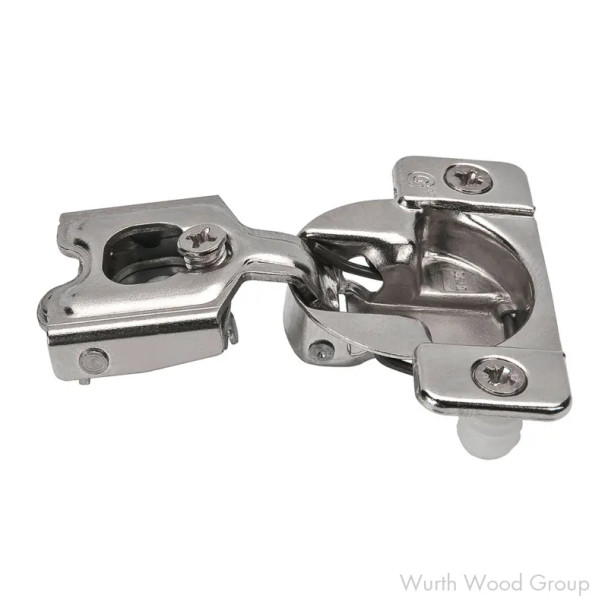

Grass TEC 864 108° face frame hinges are equipped with an adjustable switch to easily regulate the closing action of the hinge. Grass face frame hinges incorporate a pre-mounted soft-close damper within the cup for noiseless closing. The sleek nickel finish and zinc die-cast hinge offers a generous opening angle of 108°.
• Front locating tabs position hinge on face frame
• Cam side and depth adjustment with height adjustment at mounting screw
• 3 dimensional adjustment
• No protruding parts or additional pieces needed
• One piece hinge and base plate combination
• Works with current insertion machinery
• Available in 42 mm and 45 mm boring patterns
• Made in USA
• 10.7 mm (7/16") cup drilling depth
Packing: As shown below.
Sold In: Both broken and full box quantities. Discount available for full box orders.
| Boring Pattern |
45 mm |
| Cabinet Type |
Face-Frame |
| Color/Finish |
Nickel |
| Cup Depth |
11 mm |
| Cup Diameter |
35 mm |
| Material Type |
St |
| Motion Technology |
Soft-Close |
| Mount Type |
Dowel |
| Opening Angle |
108 Degree |
| Overlay |
3/4 in |
| Pack Quantity |
300 |
| Position |
Wraparound |
| Size |
108 DEGREE |
