Requires a 16.5 mm diameter bore hole.
Supplied with nickel plated finish cup.

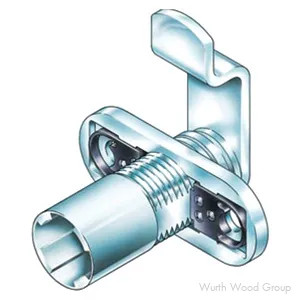

Lock comes packaged with a straight cam extending 1-1/4" and a bent arm cam extending 1-1/2".
Universal type lock for either doors or drawers.
Counterclockwise to lock at a 90Ëš rotation (only).
Cylinder length can be adjusted from 7/8" to 1-1/4" lengths by screwing the cylinder body in/out.
Screws not included.
NOTE: ORDER LOCK PLUG & STRIKE SEPARATELY
For Bright Nickel Lock Plugs, search TLLP100
For Antique English Lock Plugs, search TLLP200
For Black Lock Plugs, search TLLP300
For Statuary Bronze Lock Plugs, search TLLP400
For Polished Brass Lock Plugs, search TLLP500
For Satin Nickel Lock Plugs, search TLLP600
For White Lock Plugs, search TLLP800
Packing: As shown below.
Sold In: Both broken and full box quantities. Discount available for full box orders.
| Cylinder Length |
1-3/8 in |
| Maximum Material Thickness |
1-3/8 in |
| Position |
Vertical Mount |
