- One right and one left required per drawer.

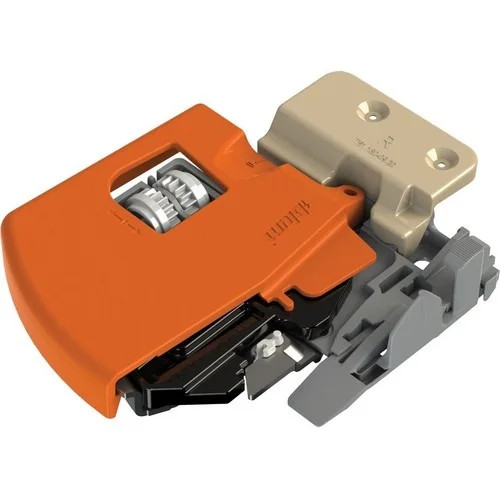

- Vertical mount locking device used to minimize sub front splitting.
- Captive right device and self-aligning left device.
- Self-adjusting drawer length tolerance.
- Steel base with synthetic, spring-loaded release levers.
- Side adjustment ±1/16" (1.5 mm).
- Height adjustment +1/8" (3.0 mm).
- Minimum inside drawer width 170 mm (6-11/16").
- Designed for 13 (1/2") drawer bottom recess.
- Minimum sub front thickness 16 (5/8").
| Height Adjustment |
3 mm |
| Material Type |
Pla |
| Orientation |
Left Hand |
| Side Adjustment |
+/- 1.5 mm |
| Size |
LEFT |
