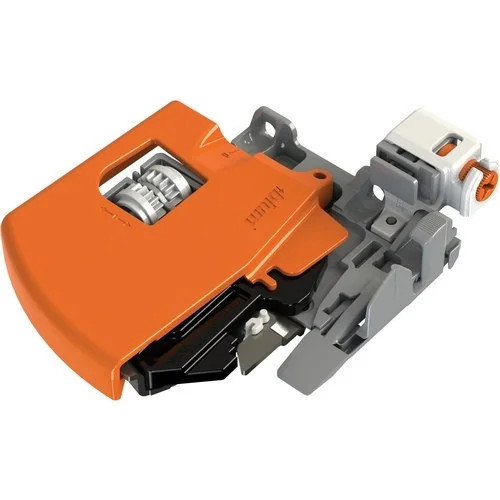

• One right and one left required per drawer
• Captive right device and self-aligning left device
• Steel base with synthetic, spring-loaded release levers
• Minimum sub front thickness 1/2" (13 mm)
• Side adjustment ±1/16" (1.5 mm)
• Height adjustment +1/8" (3.0 mm)
• Depth adjustment +3/32" (2.5 mm), preset at 0
• Integrated 3 (1/8") distance bumper for inset or overlay SERVO-DRIVE applications
• Designed for 13 (1/2") drawer bottom recess
• Minimum inside drawer width 170 (6-11/16")
• Self-adjusting drawer length tolerance
1.5 mm, 1/16, 1/16", 1/2, 1/2", 1/8, 1/8", 11/16, 11/6", 13 mm, 2.5 mm, 3.0 mm, 3/32, 3/32", 6-11/16
| Height Adjustment |
3 mm |
| Material Type |
Pla |
| Orientation |
Left Hand |
| Side Adjustment |
+/- 1.5 mm |
| Size |
LEFT |
