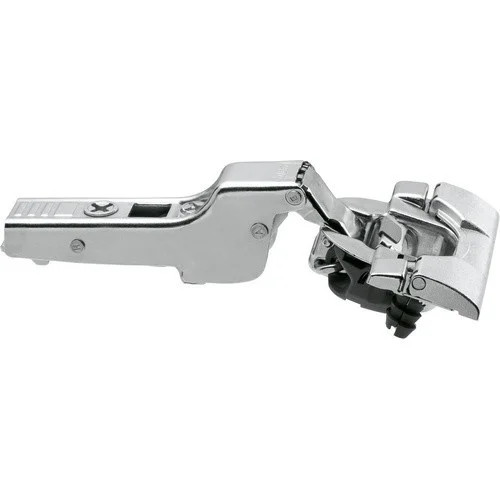

• 45 mm boring pattern
• Compatible with existing CLIP mounting plates and hinge arm cover caps
• BLUMOTION is integrated into the hinge cup
• New geometry for door thicknesses up to 26 mm (1")
Arm Style
Half Crank
Boring Pattern
45 mm
Cabinet Type
Face-Frame,Frameless
Color/Finish
Nickel
Cup Depth
13 mm
Cup Diameter
35 mm
Cup Mount
Inserta
Depth Adjustment
+ 3 mm/- 2 mm
Height Adjustment
+/- 2 mm
Hinge
Half-Cranked
Material Type
St
Motion Technology
Soft-Close
Mount Type
Toolless
Opening Angle
110 Degree
Overlay
Half Overlay
Pack Quantity
250
Side Adjustment
+/- 2 mm
Size
110 DEGREE HINGE
