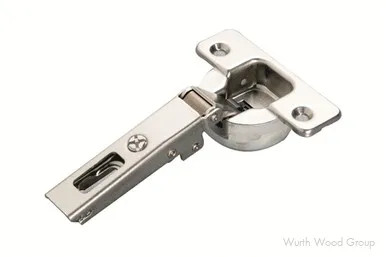

- Salice Series 100 105° Hinges feature Silentia+. Silentia+ is an adjustable integrated soft-close mechanism operated by twin silicone-oil dampers housed in the hinge cup. The activation of this innovative switch allows doors to obtain the ideal decelerating strength, and it is equipped with a new soft-close adjustment switch.
- Smooth opening with little resistance
- Uniform closing action regardless of door size
- Impervious to temperature extremes
- 12 mm hinge cup boring depth
- Edge bore distance (K) from 3 mm to 6 mm
- Up to 21 mm overlay
- For door thickness up to 25 mm
- Standard 45 mm x 9.5 mm Salice boring pattern
- Compatible with all series 200 mounting plates
- Exceeds ANSI/BHMA standards. A156.9-2010
- Integrated soft-close motion
- 105° opening angle
- Lifetime warranty
Packing: Full box quantity of 300.
Sold In: Both broken and full box quantities. Discount available for full box orders.
| Arm Style |
Straight |
| Boring Pattern |
45 mm |
| Cabinet Type |
Face-Frame,Frameless |
| Color/Finish |
Nickel |
| Cup Depth |
13.5 mm |
| Cup Diameter |
35 mm |
| Cup Mount |
Press-In |
| Height Adjustment |
+/- 2 mm |
| Hinge |
Straight-Arm |
| Material Type |
St |
| Motion Technology |
Soft-Close |
| Mount Type |
Dowel |
| Opening Angle |
105 Degree |
| Overlay |
Full Overlay |
| Side Adjustment |
+ 4.5 mm/- 1.5 mm |
| Size |
105 DEGREE |
