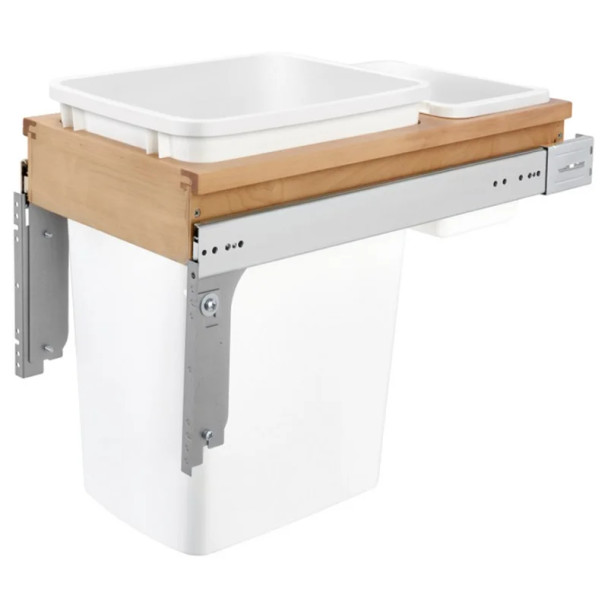

Rev-A-Shelf 4WCTM Series Top Mount Waste Containers - Inset Applications | Single 35 qt., 12" (305 mm) W x 22-1/8" (562 mm) D x 17-7/8" (454 mm) H, Single 35 qt. | 4WCTM12INDM1

Item # / SKU: 4WCTM12INDM1 MPN: 4WCTM-12DM1 Brand: Rev-A-Shelf
Fast Shipping Direct from our distribution centers
Expert Support Dedicated account representatives
Quality Guaranteed Trusted brands, professional grade
- Rev-A-Shelf 4WCTM Series is designed for door mounting only. - The RS4WCTM Series comes in four different versions to accommodate 1-1/2", 1-5/8" and 1-3/4" face frame and frameless applications. - All RS4WCTM Series come fully assembled and are constructed with solid maple wood frames. - Single bin units are available with 35 quart and 50 quart bins, while double bin units are available in two 27 quart, 35 quart and 50 quart bins. - Units are equipped with heavy duty ball bearing slides with 1" over-travel capable of 150 lb maximum loads. - The RS4WCTM Series is designed for absolute sturdiness with rear adjustable mounting brackets for variances in cabinet depth. - Single 35 quart trash pull outs include a plastic storage bin at back of unit (9-1/2" Length x 6-1/2" Wide x 5-5/8" Deep) at back of pull out. - Waste bins are available in white. - Replacement bins are sold separately. - Spacer kits are available for custom applications and can add up to 1-1/2" per side. - Door mount brackets are included with every trash pull out.
Bin Color White
Bin Size 35 quart
Capacity Single 35 qt.
Color/Finish Maple
Configuration Single
Container Size 35QT
Depth 22-3/4 in
Dimensions 12" (305 mm) W x 22-1/8" (562 mm) D x 17-7/8" (454 mm) H
Door Mount Yes
Extension Full extension
Height 17-7/8 in
Minimum Opening Depth 22-3/4 in
Minimum Opening Height 18-11/32 in
Minimum Opening Width 12 in
Motion Technology Standard
Number of Bins 1.0
Species Maple
Weight Capacity 150 lb
Width 12 in
