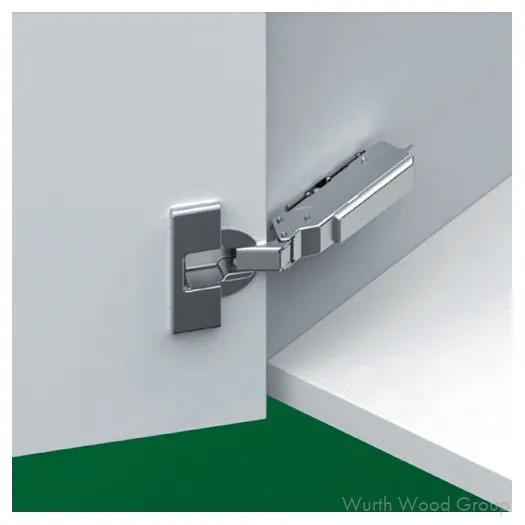

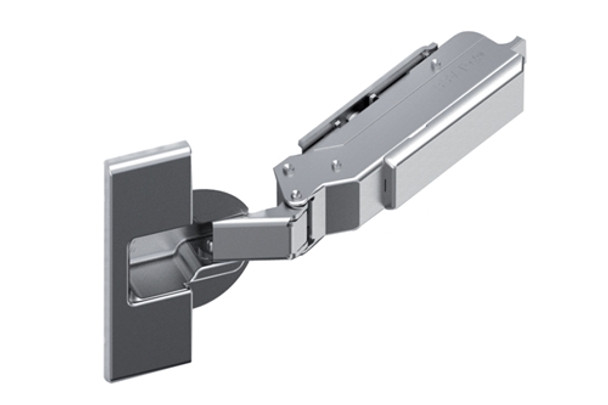

- Grass Tiomos soft-closing hinges offer unmatched performance in a timeless design.
- Grass Tiomos hinges feature a 3-dimensional adjustment mechanism, allowing precise customization for height, width, and depth.
- 3-dimensional adjustment with suitable base plate
- Accommodates overlays up to 24 mm (15/16")
- Optimal reveal up to 24 mm door thickness
- Tiomos 110° hinges offer the perfect movement for a wide range of applications, from standard doors to wide-angle doors.
- For face frame or frameless cabinets
- Convenient depth adjustment with worm gear
- Soft-Close
Packing: 150 each per box without screws. Sold In: Both broken and full box quantities. Discount available for full box orders.
| Arm Style |
Straight |
| Boring Pattern |
45 mm |
| Cabinet Type |
Face-Frame,Frameless |
| Color/Finish |
Nickel |
| Cup Depth |
12.6 mm |
| Cup Diameter |
35 mm |
| Depth Adjustment |
+ 3 mm/- 2 mm |
| Height Adjustment |
+ 3 mm/- 2 mm |
| Material Type |
St |
| Motion Technology |
Soft-Close |
| Mount Type |
Dowel |
| Opening Angle |
110 Degree |
| Overlay |
Overlay |
| Side Adjustment |
+ 3 mm/- 2 mm |
| Size |
110 DEGREE B45 |
