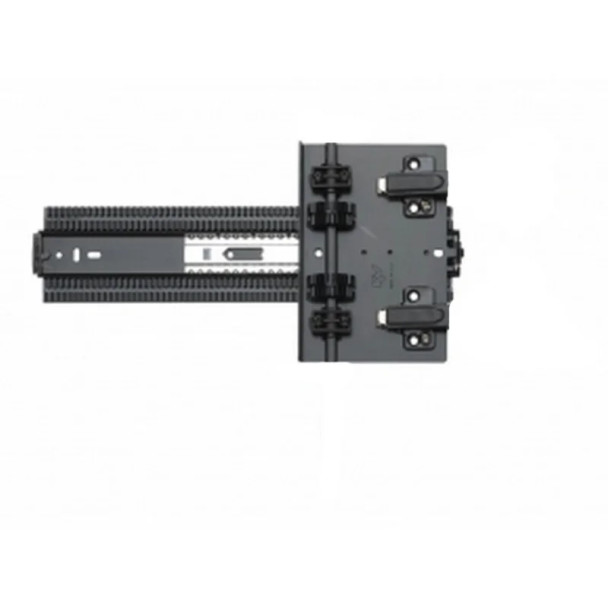

- KV Model: 8091/8092/8091KIT-M - KV8091: Pocket door slides (top and bottom slides for single door) without hinge base plates; KV8092: Pocket door slides (top and bottom slides for single door) with hinge base plates attached to slide bracket; KV8092SEB: Pinion Shaft to connect top and bottom slides; KV8091KIT-M: Hinge Overlay Kit; KV8090: Cassette Roller for raised panel doors
- Slides come in lengths from 12" to 30"
- Dual rack and pinion system eliminates any potential for sag
- Precision ball bearing slides provide smooth and quiet operation
- Pinion shafts (36", 48" or 72" lengths) connect top and bottom pocket door slides (pinion shafts sold separately). Shafts can be cut to exact length, as needed.
- 75 lb Class Rating for heavy duty applications, maximum door dimensions are 72" tall x 26" wide
- ORDERING INSTRUCTIONS:
KV8091: Step 1: Order specific length of 8091; Step 2: Order Pinion Shaft; Step 3: Customer supplies hinges and hinge base plates.
KV8092: Step 1: Order specific length of 8092; Step 2: Order Pinion Shaft; Step 3: Select hinge option from hinge table below.
KV8091KIT-M: Step 1: Order specific length of 8091; Step 2: Order Pinion Shaft; Step 3: Order Overlay Kit.
- Packing:
KV8091: 1 pair (top and bottom) of slides without hinges or hinge mounting plates.
KV8092: 1 pair (top and bottom) of slides with four hinge mounting plates, hinges not included.
KV8092SEB: 1 pair 36", 48" or 72" pinion shafts.
- Sold In: Both broken and full box quantities. Discount available for full box orders.
