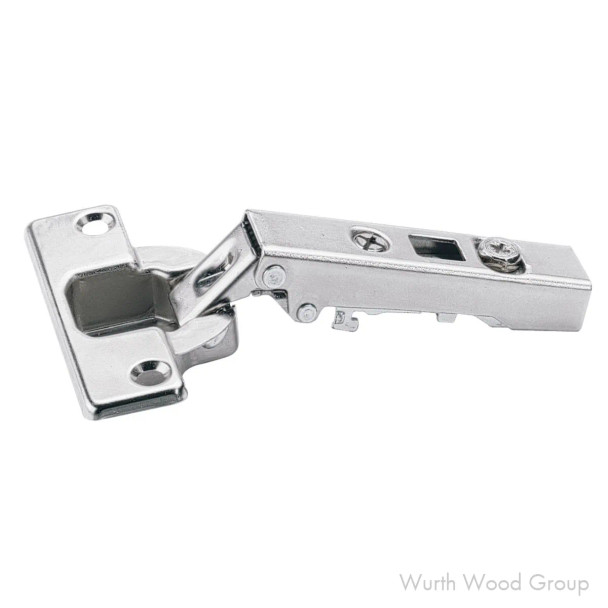

For door thickness 15 - 25mm, the Hettich Intermat Self-Close Full Overlay Face-Frame; Frameless Hinges Nickel, 110° Dowel offers integrated overlay adjustment +2mm / -2mm and cup diameter of 35mm with a cup depth of 11.6mm. Additionally, it includes an integrated depth adjustment +2.5mm / -1.5mm along with height adjustment at the mounting plate. The product is quality classified under EN 15570, Level 2.
