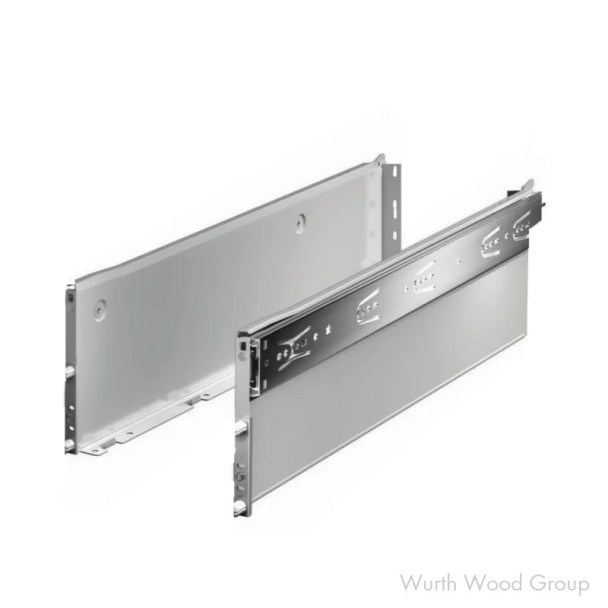

- Integrated side mount ball bearing drawer slide and metal drawer side.
- Ball bearing telescopic full extension ensures smooth running performance with continuous bearings.
- Hold-in detent ensures drawers stay closed.
- Easy lever disconnect for removal of drawer box from cabinet member.
- Drawer side - white epoxy finish; Drawer slide - Zinc coated steel.
- Manufactured from cold rolled steel.
- Frameless or face frame application.
- Front slotted hole for face frame mounting.
- Face frame rear mounting bracket available.
- Load capacity: 100 lb
- Adjustments: Cam Height ±2 mm, Side ±1.5 mm
- Zargen is made in the USA, ZBox is assembled in the USAPacking: System sets include left/right cabinet members (slide members) and left/right drawer sides.
Sold In: Both broken and full box quantities. Discount available for full box orders.
