- Can be used for all COMPACT OVERLAYS.
- For optimum BLUMOTION effect, one BLUMOTION 971A should be installed for most applications.
- Tall or heavy doors may require an additional BLUMOTION 971A.
- For applications with less than 1" overlay use spacer and 2" installation screw for optimum effect.

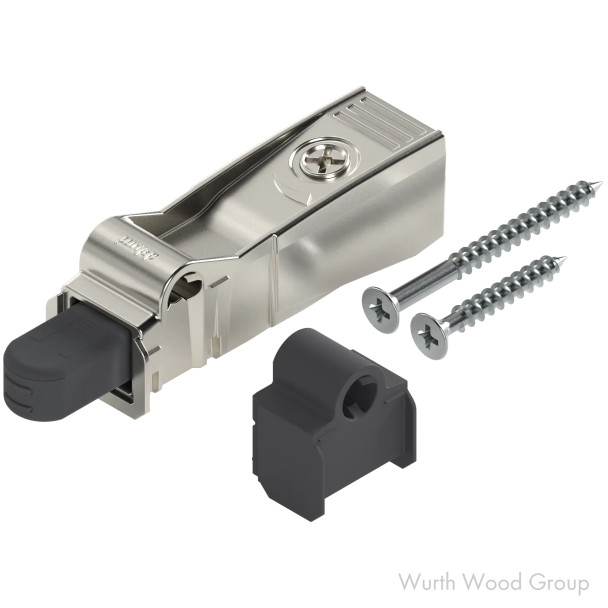

- The partial overlay spacer snaps onto the side of the BLUMOTION for easier mounting.
- Use a Phillips or POZI screwdriver to adjust the contact point in or out (+5/-5 mm). Adjust out for larger, heavier doors or in for smaller, lighter doors.
- BLUMOTION for door mounts anywhere on the hinge-side stile of the cabinet using a 1-1/4" screw or 2" screw when using spacer.
